Instrument model: GCD-1000( (alkaline type)
Hydrogen purity:>99.999%
Output flow rate: 0-1000ml/min
Output pressure: 0-0.5Mpa (factory set at 0.4Mpa)
Working power supply: 220V±10%; 50HZ±5%
Zui high-power: 500W
Environmental conditions: Environmental humidity: 10-40 ° C; Relative humidity:≤85%
External dimensions: 515x305x410mm
Weight: approximately 19.5Kg
- Product Details
- Product manual

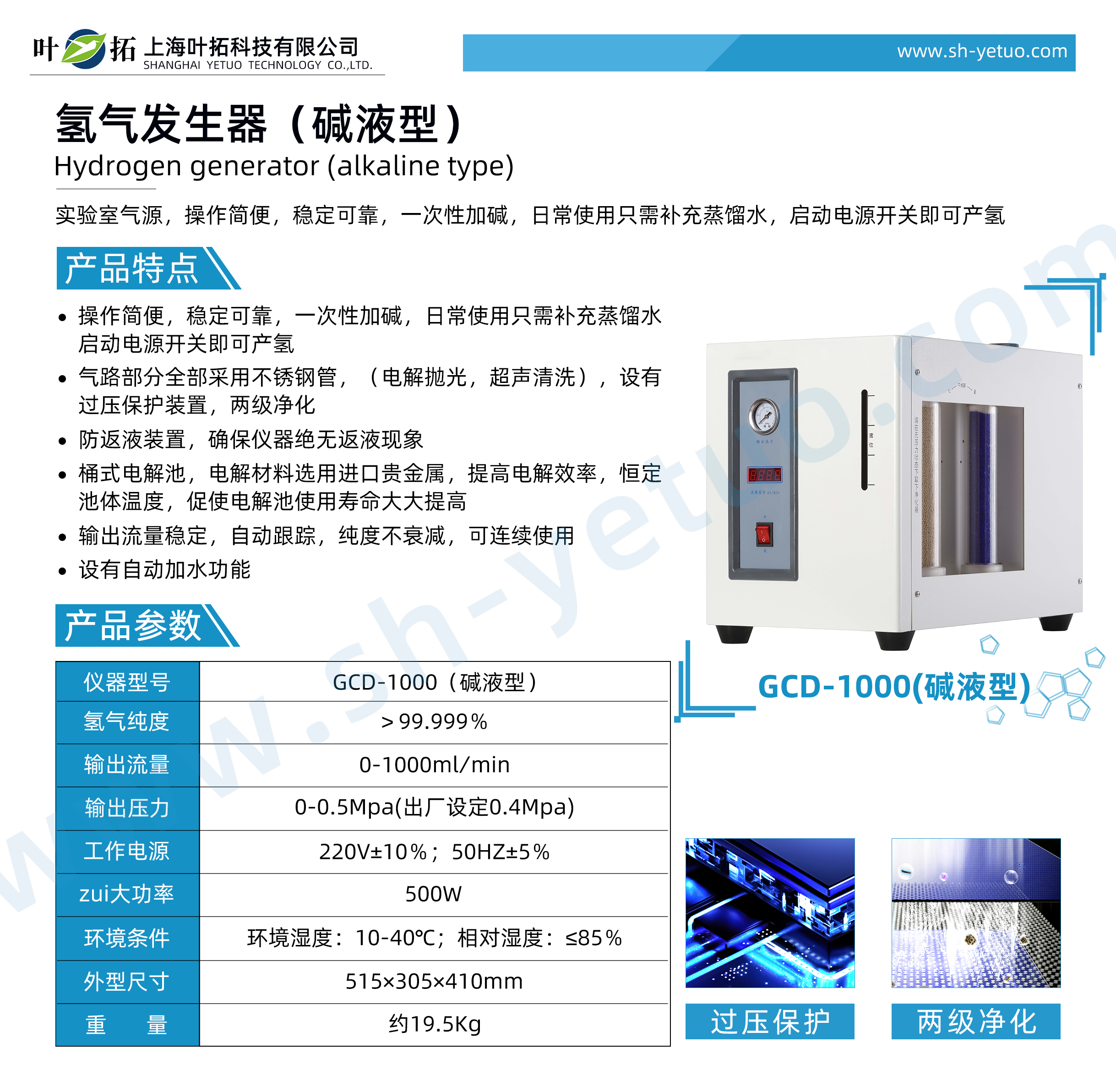

Model: GCD-1000
Product Description: Laboratory gas source, easy to operate, stable and reliable. It can add alkali at once. For daily use, only add distilled water and start the power switch to produce hydrogen.
Product characteristics of Ye Tuo GCD-1000 hydrogen generator (alkaline type)
Easy to operate, stable and reliable, with a one-time addition of alkali. For daily use, simply add distilled water and start the power switch to produce hydrogen.
The gas circuit is entirely made of stainless steel pipes (electrolytic polishing, ultrasonic cleaning), equipped with overvoltage protection devices, and two-stage purification.
● Anti backflow device to ensure that the instrument has no backflow phenomenon.
The barrel type electrolytic cell uses imported precious metals as the electrolysis material to improve electrolysis efficiency, maintain a constant cell temperature, and greatly prolong the service life of the electrolytic cell.
Stable output flow, automatic tracking, purity does not decay, and can be used continuously.
Equipped with automatic water adding function.
