Ye Tuo YTXD433-12 Box High Temperature Furnace

Product parameters:

Model: YTXD433-12

Performance: Temperature control range: Room temperature -1200 ° C

Temperature control accuracy:<1000 ± 0.1 ° C; ≥ 1000±1°C

Temperature achievable: ≤ 1200 ° C

Working temperature: ≤ 1100 ° C

Constant temperature fluctuation: ± 1 ° C (test point is 1000 ° C)

Temperature equilibrium: ± 3 ° C (test point at 1000 ° C)

Heating rate: Recommended for temperatures below 1000 degrees Celsius ≤ 10 ° C/min, Zui fast heating rate ≤ 30 ° C/min

Cooling rate: 700 ° C or above ≤ 10 ° C/min

Furnace surface temperature: The surface temperature of the furnace body is less than room temperature+10 (measured at 1000 ° C)

Composition: Exterior: Cold rolled steel plate, surface resistant coating

Furnace body: Ceramic fiber

Sensor: K-type thermocouple

Heating element: high-quality alloy resistance wire

Cooling fan blade: Axial flow fan

Furnace structure: double-layer shell structure, equipped with air cooling system

Controller: Control Method: PID Control

Setting representation: numerical setting/numerical display

Overtemperature protection: integrated controller

Overtemperature setting: digital setting

Running function: Customized running/Program running (30 segment program temperature control)

Additional functions: Deviation correction, power outage compensation, lock key function

Timer: 1 minute -99 hours 59 minutes and 999 hours 50 minutes digital setting, automatic operation, fast automatic stop

Safety: Working environment: RT ± 5-40 ° C

Usage guarantee: Open door, power off, over temperature alarm, leakage protection, over temperature protection

Specification: Furnace Structure: Vertical

Furnace size (D * W * H): 400 * 300 * 300

Dimensions (D * W * H): 670 * 570 * 820

Weight: 89kg

Capacity: 36L

Input power: 9KW

Power supply voltage: 380V50HZ

Accessory: High temperature gloves: Caston pair

Crucible pliers: one 40LM

Pad brick: one piece of corundum board

Product selection: Mobile stove frame: Stainless steel

Exhaust port: upper part with an inner diameter of 20mm

Recorder: Manufacturer model optional available

Control software: can provide manufacturer model selection


Product Quotation:Inquiry now

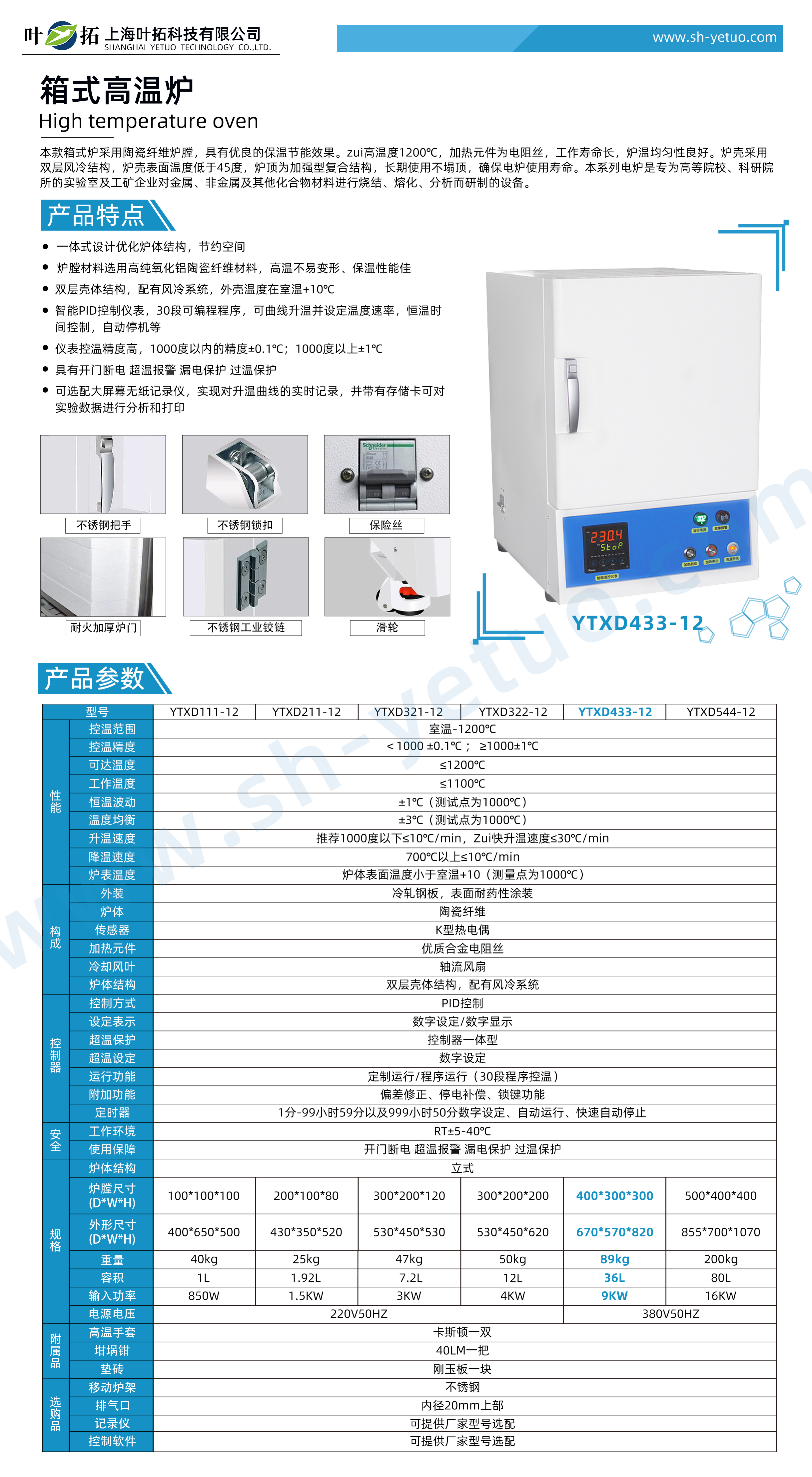

Yetuo YTXD433-12 Box type High temperature Furnace


Model: YTXD433-12




Product Overview:


This box furnace adopts a ceramic fiber furnace chamber, which has excellent insulation and energy-saving effects. The maximum temperature is 1200 ℃, the heating element is a resistance wire, the working life is long, and the furnace temperature uniformity is good. The furnace shell adopts a double-layer air-cooled structure, and the surface temperature of the furnace shell is below 45 degrees. The furnace top is a reinforced composite structure that will not collapse during long-term use, ensuring the service life of the electric furnace. This series of electric furnaces is specially developed for sintering, melting, and analyzing metal, non-metal, and other compound materials in laboratories and industrial and mining enterprises of higher education institutions, research institutes, and research institutes.

Product Features of Yetuo YTXD433-12 Box type High temperature Furnace



Integrated design optimizes the furnace structure and saves space.


The furnace material is made of high-purity alumina ceramic fiber material, which is not easily deformed at high temperatures and has excellent insulation performance.


Double layered shell structure, equipped with air cooling system, with shell temperature at room temperature+10 ° C.


Intelligent PID control instrument, 30 segment programmable program, capable of curve heating and setting temperature rate, constant temperature time control, automatic shutdown, etc.


The instrument has high temperature control accuracy, with an accuracy of ± 0.1 ° C within 1000 degrees; Over 1000 degrees ± 1 ℃


● Equipped with over temperature alarm and leakage protection for power outage when opening the door.


● Optional large screen paperless recorder for real-time recording of temperature rise curves, with storage card for analysis and printing of experimental data
