Product parameters:
Name: Comprehensive
Model: YTUP30SUVF
System process: PF+KDF+AC+RO+UV+DI+UF+TF
Water inlet requirements: Urban tap water (TDS<250ppm, 5-45 ℃, 0.02-0.5Mpa, pH 3-10)
UP Ultra Pure Water Index
Electrical resistivity/conductivity: 18.25M2.cm@25 ° C, 0.054μs/ cm@25 ° C (<0.1μs/cm)
Heavy metal ions:<0.01ppb
Total Organic Carbon (TOC):<3 ppb
Heat source/endotoxin:<0.001 Eu/ml
Microorganisms/bacteria:<0.1 CFU/ml
Ribonuclease:<0.01ng/ml
Deoxyribonuclease:<4pg/ul
Particle matter (>0.22 μ m) :<1/ml
RO reverse osmosis water index
TDS value: RO water TDS (total solid solubility, ppm) ≤ influent TDSx1% (desalination rate ≥ 99%)
Separation rate of divalent ions:>99% (when using new RO membranes)
Organic separation rate:>99%, when MW>200Dalton
Particle and bacterial separation rate:>99%
System water production (25 ° C): 15S: 15 liters/hour * 30S: 30 liters/hour * 45S: 45 liters/hour
Maximum production capacity of reverse osmosis water: 2.0 liters/minute (open the built-in pressure bucket)
Water inlet pressure monitoring: 0-0.7Mpa, 0-100PSI
Water outlet pressure monitoring: 0-1.6Mpa, 0-220PSI
Pump inlet pressure monitoring: 0-1.6Mpa, 0-220PSI
Digital water quality monitoring: conductivity TDS testing pen+LCD online resistivity, conductivity, TDS, water temperature monitoring
External dimensions/weight: length x width x height: 45x45x50cm/45Kg
Power supply/power: 100-240V, 50-60Hz/120W
Standard configuration: host (including 1 set of purification column)+12 liter pressure water bucket (built-in)+conductivity TDS test pen+accessory package
- Product Details
- Product manual

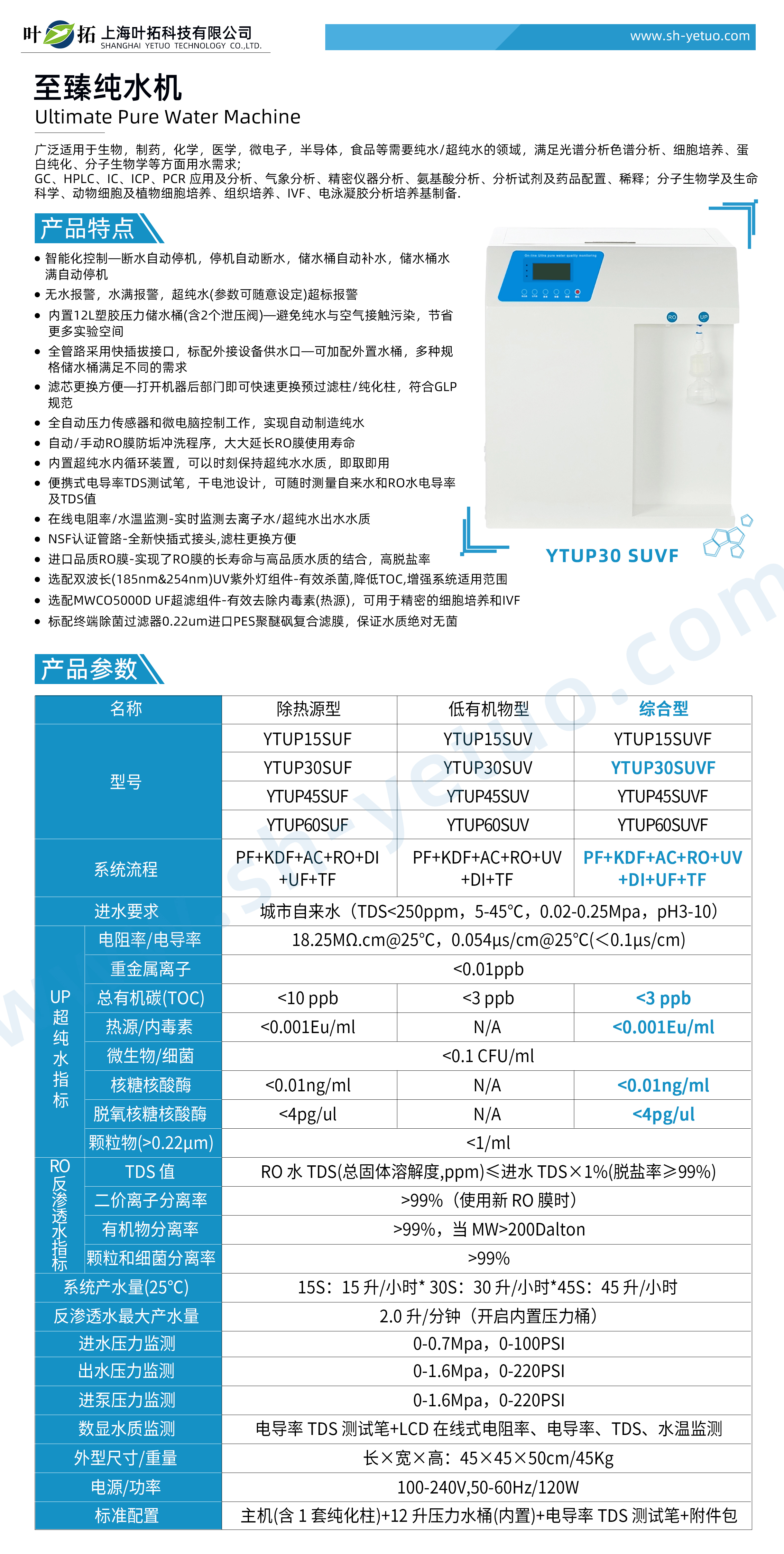

Ye Tuo YTUP30SUVF Ultra Pure Water Machine (Integrated)
Model: YTUP30SUVF (comprehensive)
Product Overview:
Widely applicable in fields such as biology, pharmaceuticals, chemistry, medicine, microelectronics, semiconductors, food, etc. that require pure/ultra pure water, meeting water needs in areas such as harmonic analysis chromatography analysis, cell culture, protein purification, molecular biology, etc;
GC, HPLC, IC, ICP, PCR application and analysis, meteorological analysis, precision instrument analysis, amino acid analysis, analysis reagents and drug preparation, dilution; Molecular biology and life science, animal cell and plant cell culture, tissue culture, IVF, electrophoresis gel analysis medium preparation.
Product features of Ye Tuo YTUP30SUVF ultra pure water machine (comprehensive type):
Intelligent control automatically shuts down when water is cut off, automatically shuts down when water is cut off, automatically replenishes water in the water storage bucket, and automatically shuts down when the water storage bucket is full
● No water alarm, water full alarm, ultra pure water (parameters can be set freely) exceeding the standard alarm
Built in 12L plastic pressure water storage bucket (including 2 pressure relief valves) - to avoid pure water and air contact pollution, saving more experimental space
The entire pipeline adopts a quick plug interface, and standard external equipment is equipped with a water supply port. An external water bucket can be added, and various specifications of water storage buckets can meet different needs
Easy to replace filter element. Once the machine is turned on, the department can quickly replace the pre filtration column/purification column, which complies with GLP specifications
Fully automatic pressure sensor and microcomputer control work to achieve automatic production of pure water
Automatic/manual RO membrane anti fouling flushing program, greatly extending the service life of RO membranes
● Built in ultra pure water internal circulation device, which can maintain the quality of ultra pure water at all times, ready to use
Portable conductivity TDS testing pen with dry battery design, capable of measuring tap water and RO water conductivity and TDS values at any time
Online resistivity/water temperature monitoring - Real time monitoring of deionized water/ultrapure water effluent quality.
NSF certified pipeline - brand new quick plug connector, convenient filter column replacement
● Imported quality RO membrane - achieves the combination of long service life and high-quality water quality of RO membrane, with high desalination rate
Optional dual wavelength (185nm&254nm) UV lamp assembly - effective sterilization, reduced TOC, and enhanced system applicability
Optional MWCO5000D UF ultrafiltration component - effectively removes endotoxins (heat source), can be used for precision cell culture and IVF
Standard terminal sterilization filter with 0.22um imported PES polyethersulfone composite filter membrane ensures absolute sterility of water quality
